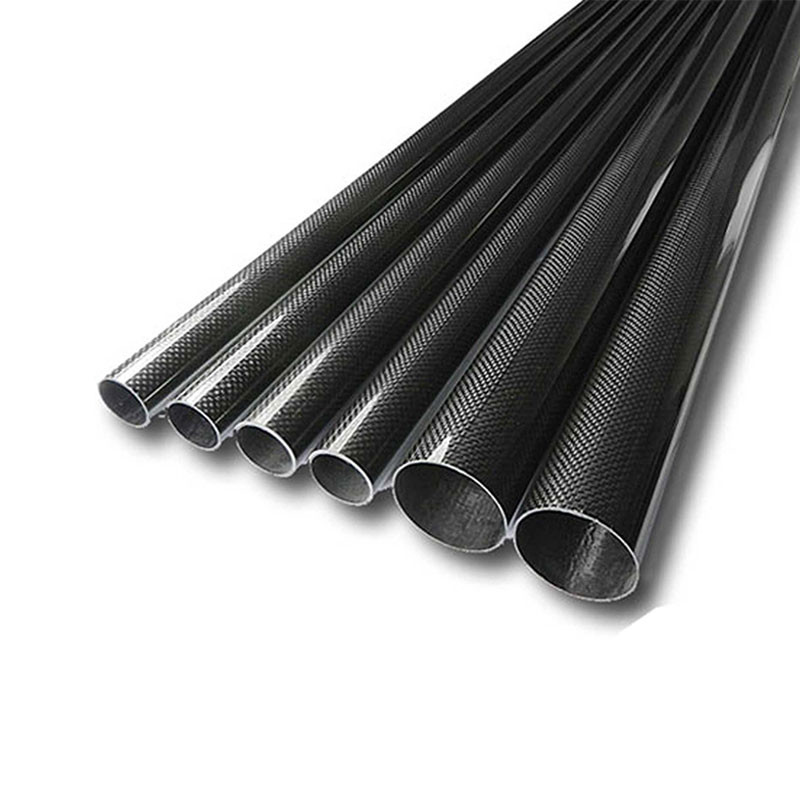

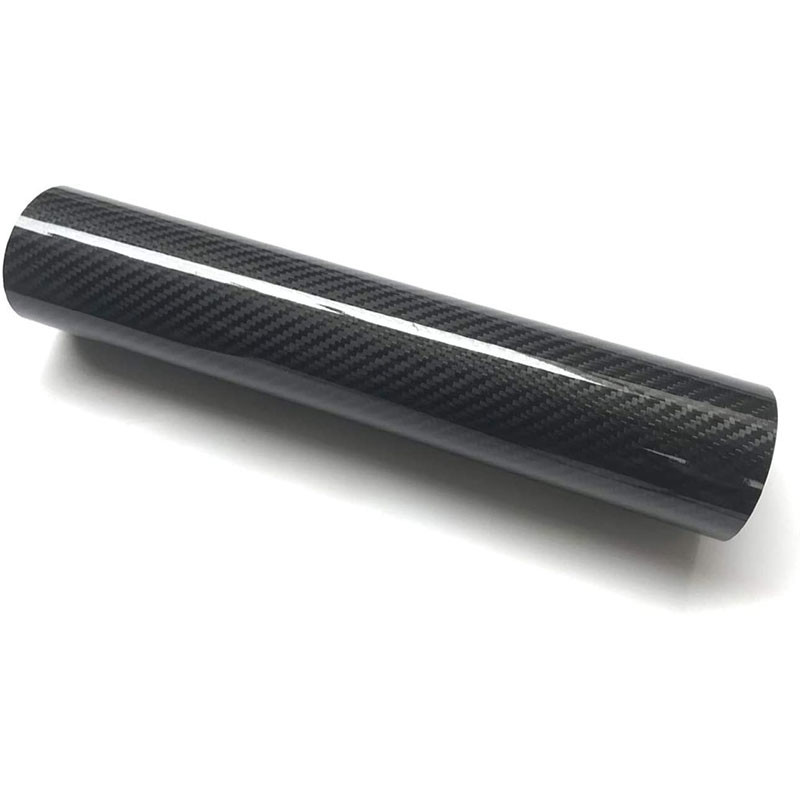

Industrial Plain Finish Roll Wrapped Tube Carbon Fiber / Carbon Fibre Tube
Carbon Fibre Tube Description:
The New 3K High-Performance carbon fibre tubes are our range of 3K Woven Finish tubes which have a stunning high-gloss / Matte woven carbon fibre finish to complement their incredible strength. With the classic appearance of 2/2 twill carbon fibre coupled with 100% roll-wrapped prepreg carbon fibre construction, these remarkable tubes look as good as they perform.
This tube is ideally suited to a wide range of applications such as cleaning equipment, radio-controlled models (RC Planes), recreational equipment, sporting goods, robotics and photography/video equipment, etc.).
Different from Pultruded carbon fiber tubes, a roll-wrapped tube is lighter in weight, stiffer, and stronger. It is widely used for many projects in sports, RC, robots, etc. by hobbyists for surface protection. 3K Carbon fiber tube with high strength, stiffness, excellent load-bearing performance.
This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3K woven carbon fibre so that the tube has the classic appearance of woven carbon fibre. This means that although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.

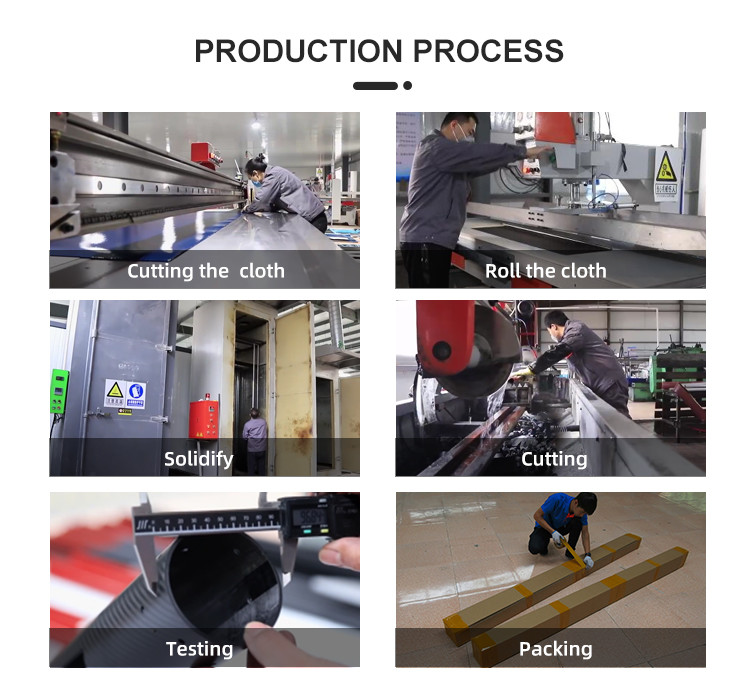

Our roll wrapped prepreg carbon fiber tubes are manufactured by wrapping unidirectional carbon fiber prepreg fabrics around a mandrel, wrapped by our machines, then the tubes after high temperature curing and repeated grinding. Finally manufactured a highly specific and customizable carbon fiber tube with lightweight and high strength properties. Their surface is 3K carbon fiber weave fabric, the tubes have beautiful and amazing appearance. These roll-wrap carbon fiber tubes offer higher strength to weight ratio than is available in pultruded tubes.
Specifications:
| Product Name | Carbon Fiber Tube |
| Material | 100% Carbon Fiber |
| Color | Black or custom |
| Surface | Matt/Glossy |
| Size | Custom thickness and length |
| Fiber Specifications | 1K/3K/12K |
| Weaving Style | Plain/Twill |
| Fiber Type | 1.Carbon fiber+carbon fiber
2.Carbon fiber+ glass fiber
3.Carbon fiber+aramid fiber |
| Application | 1. Cleaning equipment. 2. Aerospace, RC model parts Helicopters Model
3. Manufacture fixtures and tooling
4. Industrial automation and robotics
5. Sports equipment
6. Musical instruments
7. Scientific apparatus
8. Medical device
9. Others |
| Our Product | Carbon fiber tube, carbon fiber plate, carbon fiber profiles. |
